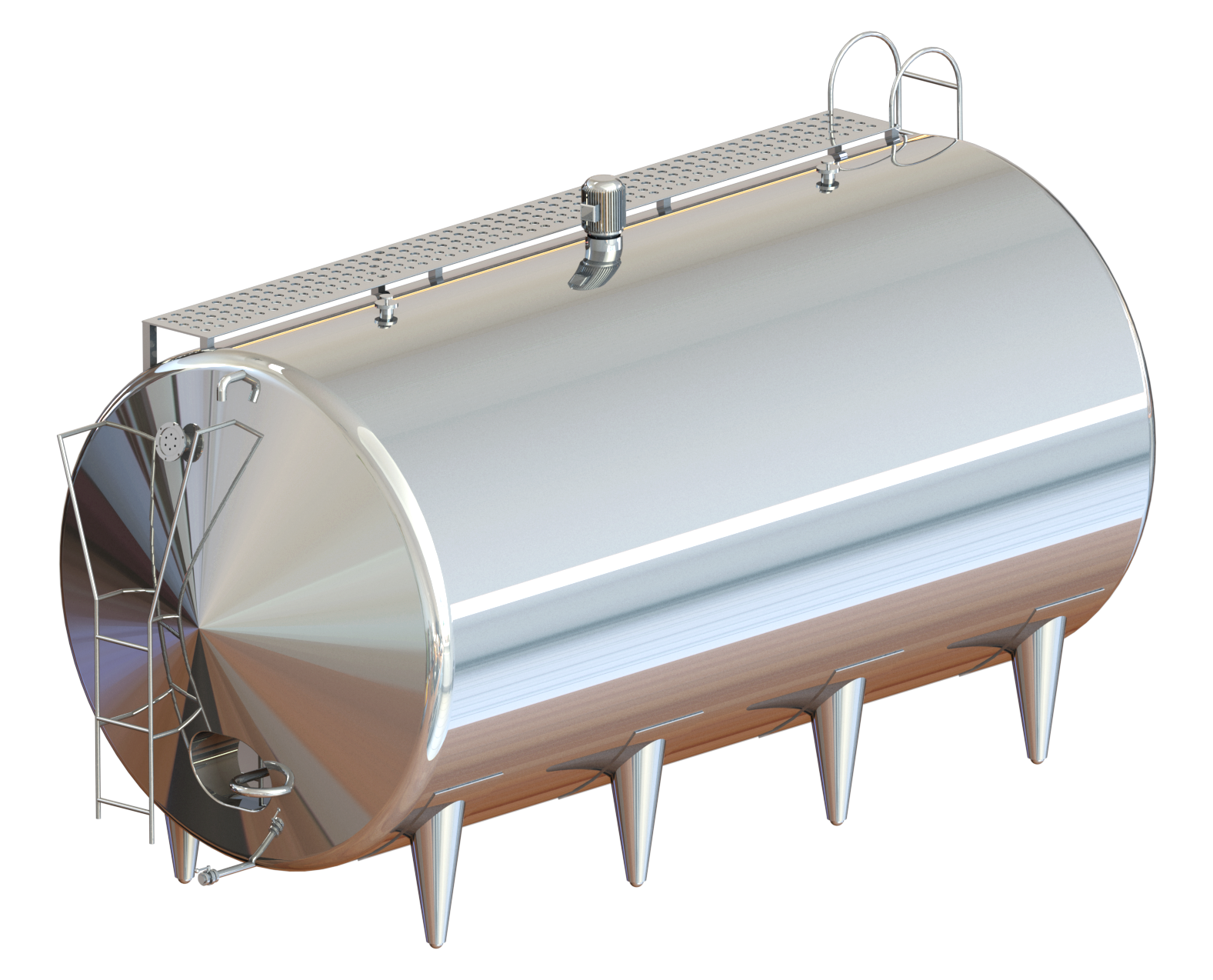

With the assistance of our professional we are proficient providing hmst and milk storage tank hmst and are insulated tank used for storing chilled milk at milk chilling center due to its good design and insulation the temperature of the milk maintain and the milk is held in it until further processing.
Feature
- Low maintains
- Easy installation
- Longer service life
- Sturdy construction
- Corrosion resistance
- High tensile strength
| Model | 2KL HMST | 3KL HMST | 5KL HMST | 10KL HMST | 15KL HMST | 20KL HMST |
| CAPACITY | 2000 | 3000 | 5000 | 10000 | 15000 | 20000 |
| DIAMETER | 1458 | 1558 | 1783 | 2308 | 2308 | 2308 |
| HIGHT | 2150 | 2250 | 2350 | 3050 | 3050 | 3050 |
| LENGTH | 2250 | 2250 | 3050 | 3650 | 5150 | 6600 |
| INSULATION | PUF | PUF | PUF | PUF+GLASSWOOL | PUF+GLASSWOOL | PUF+GLASSWOOL |
| INSULATION THIKNESS | 75 | 75 | 75 | 90 | 90 | 90 |
| INNER MOC | SS-304 | SS-304 | SS-304 | SS-304 | SS-304 | SS-304 |
| INNER SHELL SIDE DISH THICKNESS | 2.0/2.0 | 2.0/2.0 | 2.0/2.0 | 2.0/2.0 | 2.0/2.0 | 2.0/2.0 |
| AGITATOR DRIVE AND NO. | 0.5 HP/1NOS | 0.5 HP/1NOS | 0.5 HP/1NOS | 0.5 HP/1NOS | 0.5 HP/1NOS | 1HP/1NOS |
| SPAY BALL | 2 | 2 | 2 | 2 | 3 | 3 |
| LEADER | YES | YES | YES | YES | YES | YES |
| LIGHT WITH SIDE GLASS | YES | YES | YES | YES | YES | YES |
| AIR VENT | YES | YES | YES | YES | YES | YES |
| LEG | 4 | 4 | 4 | 6 | 6 | 6 |
| INLET | 38 | 38 | 38 | 38 | 38 | 38 |
| OUTLET | 51 | 51 | 51 | 51 | 51 | 51 |
